CE-2306BEG

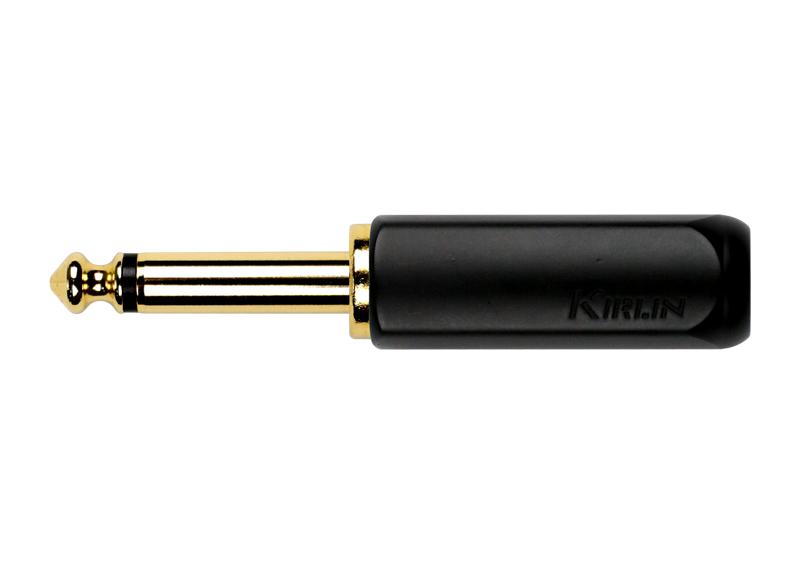

Kirlin 1/4" Straight Mono Plug
1/4" Mono Plug, Gold plated contact
| Product | |
| Connection Type | Plug |
| Gender | male |
| Product performance | |
| Contact resistance | depends on mating connector mΩ |
| Dielectric strength | 1 kVdc |
| Insulation resistance | >2 (initial)GΩ≥1 GΩ (after damp heat test) |
| Rated current per contact | depends on mating connector A |
| Rated voltage | <50V |
| Cable OD. | 7-7.5 mm |
| Lifetime | >1000 mating cycles |
