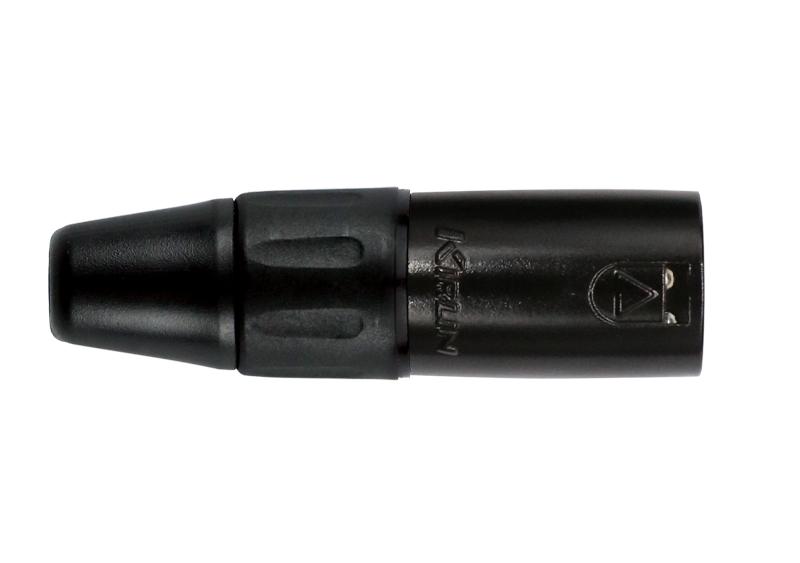

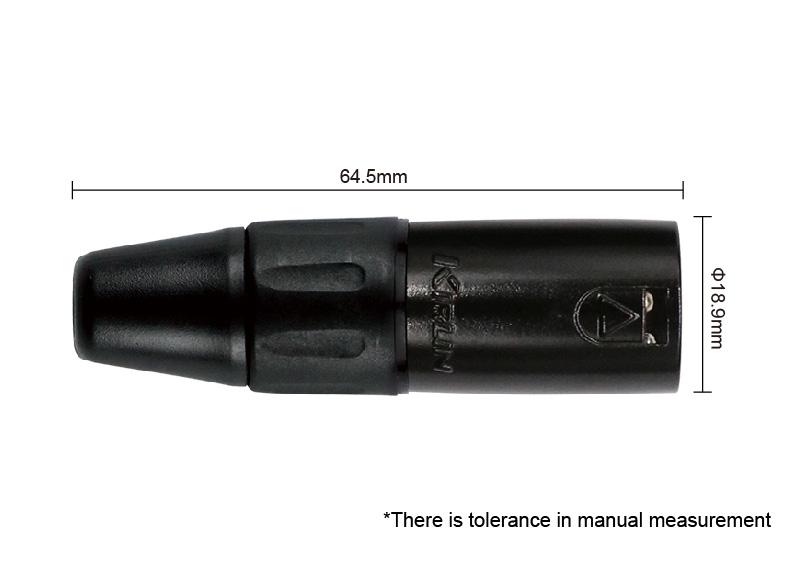

X-3215PB

Kirlin XLR Male


Connection TypeXLR
Gendermale
Capacitance between contacts≤ 4 pF
Contact resistance≤ 3 mΩ
Dielectric strength1,5 kVdc
Insulation resistance>10GΩ (initial)
Rated current per contact16 A
Rated voltage<50V
Cable OD.6 -8 mm
Lifetime>1000 mating   cycles
Wiresizemax. 2.5 mm²(max. 14   AWG)
Temperature range -30 °C to +80 °C
