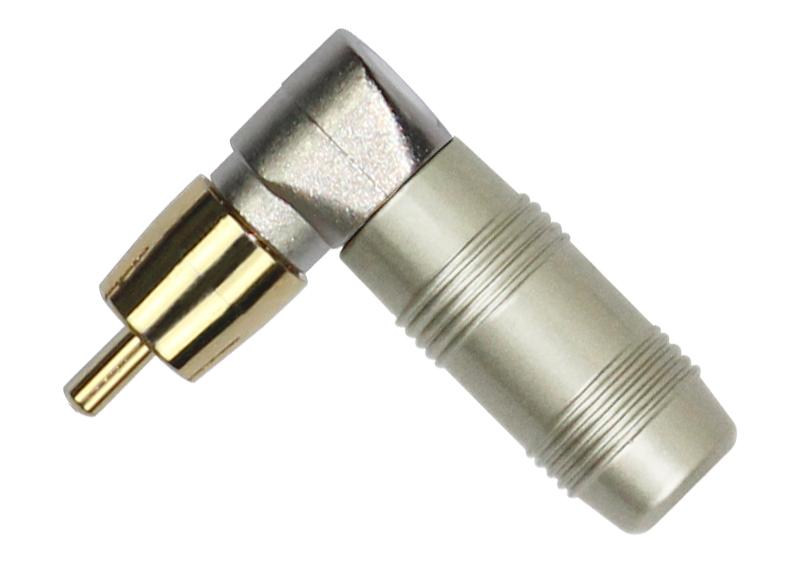

CH-4059PRG
Kirlin RCA Plug
RCA Plug, Gold plated contact
Patent Nos. ZL 2007 3 0154655.5
| Connection Type | RCA |
| Gender | male |
| Product performance | |
| Capacitance between contacts | ≤ 7 Pf |
| Insulation resistance | >5GΩ (initial) |
| Rated current per contact | depends on mating connector A |
| Rated voltage | <50V |
| Cable OD. | 4 -7 mm |
| Lifetime | >2000 mating cycles |
| Temperature range | -20 °C to +65 °C |
