MB-20

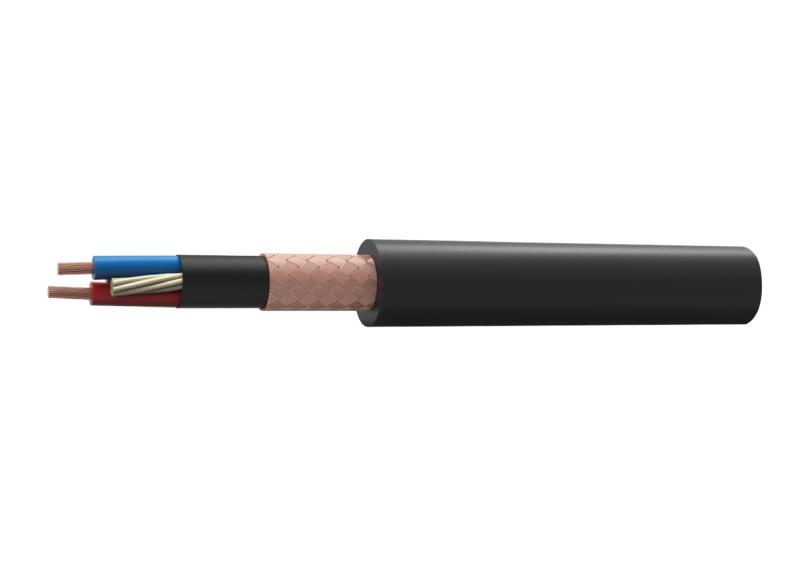

Kirlin Original Microphone Cable


●  20 x2 gauge Oxygen Free Copper (OFC) conductor

●  OFC braided shielding with 95% coverage

●  PVC jacket with 6.5mm outer diameter

Conductor Gauge (AWG):20
Number of Conductors:2
Number of Strands:46 x2
Strand OD (mm):0.12
Conductor Section (mm2):

0.5

Conductor Structure (mm2):2 x0.5
Conductor Material:OFC
Insulation OD (in):0.063 x2
Insulation OD (mm):1.6 x2
Insulation Material:PE
Type of Shield:Braid x1
Shield Material:OFC
Shield Coverage (%):95
Jacket Material:PVC
Jacket Color:

Black(BK)

Outside Diameter (in):0.256
Outside Diameter (mm):6.5

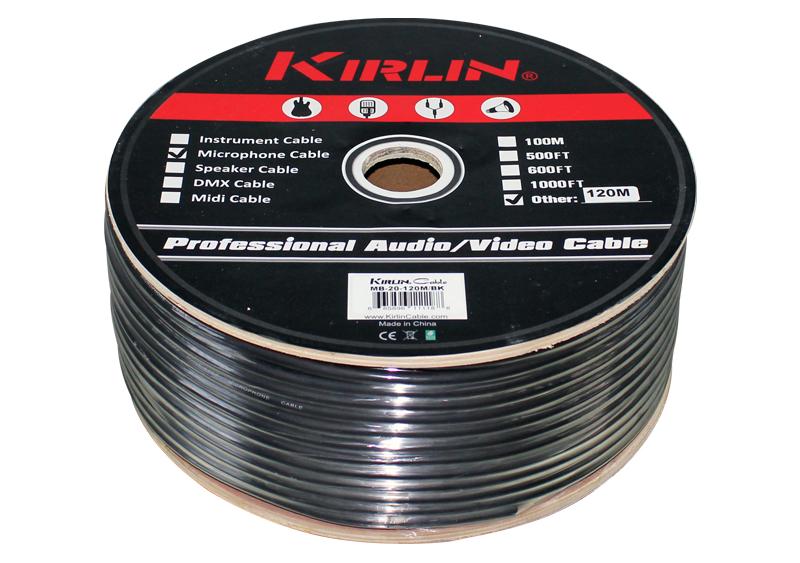

Large Roll (ft/Roll):1000
Large Roll (m/Roll):305
Standard  Roll   (ft/Roll)328
Standard  Roll  (m/Roll)100
