MPQ-20

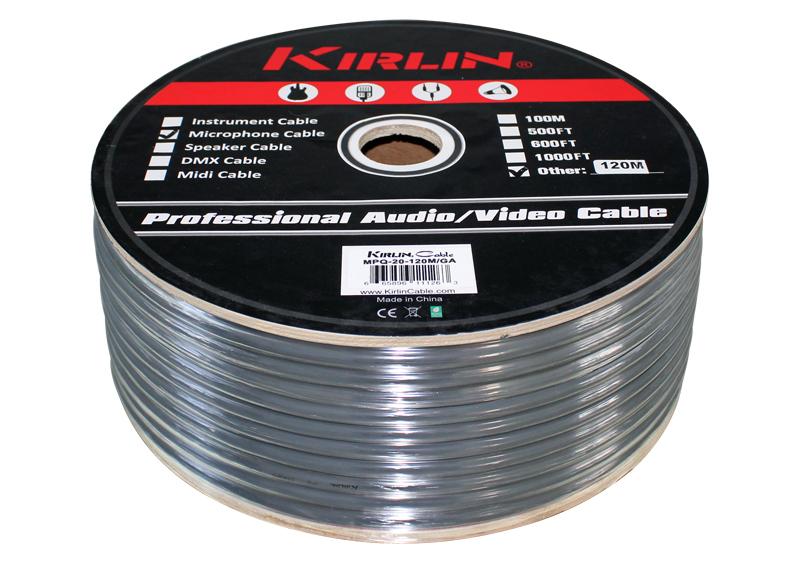

Kirlin Stage MPQ Microphone Cable

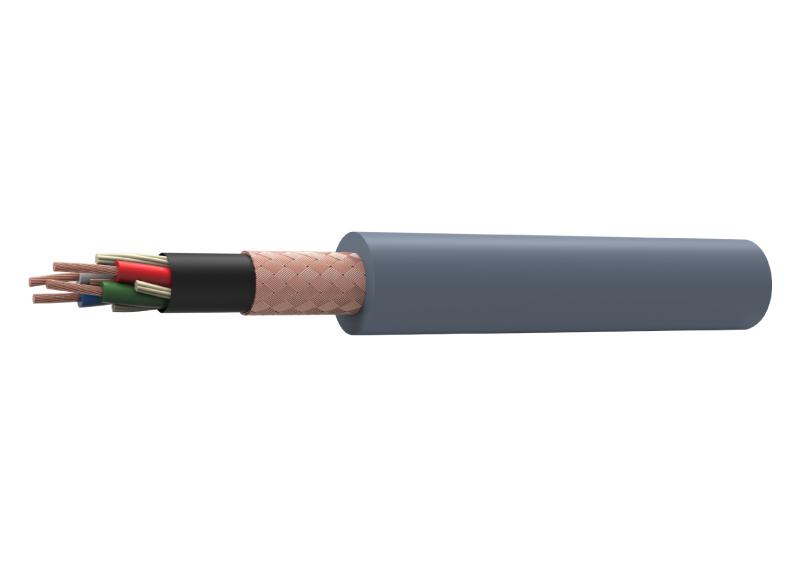

● 20 x4 gauge Copper conductor
● Copper braided shielding with 95% coverage
● Gray (GA) PVC jacket with 7.8mm outer diameter
| Conductor Gauge (AWG): | 20 |
| Number of Conductors: | 4 |
| Number of Strands: | 46 x4 |
| Strand OD (mm): | 0.12 |
| Conductor Section (mm2): | 0.5 |
| Conductor Structure (mm2): | 4 x0.5 |
| Conductor Material: | Copper |
| Insulation OD (in): | 0.063 x4 |
| Insulation OD (mm): | 1.6 x4 |
| Insulation Material: | PE |
| Type of Shield: | Braid x1 |
| Shield Material: | Copper |
| Shield Coverage (%): | 95 |
| Jacket Material: | PVC |
| Jacket Color: | Gray(GA) |
| Outside Diameter (in): | 0.307 |
| Outside Diameter (mm): | 7.8 |
| Large Roll (ft/Roll): | 600 |
| Large Roll (m/Roll): | 183 |
| Standard Roll (ft/Roll) | 328 |
| Standard Roll (m/Roll) | 100 |
