MS-20

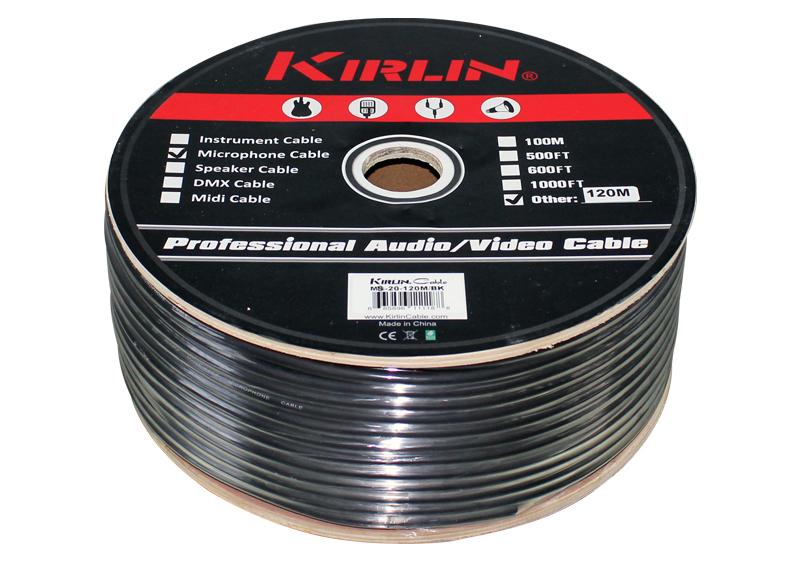

Kirlin Studio MS Microphone Cable


●  20 x2 gauge Sliver Plated Oxygen Free Copper (SPOFC) conductor

●  SPOFC braided shielding with 95% coverage

●  Black (BK) PVC jacket with 7.8mm outer diameter

Conductor Gauge (AWG):20
Number of Conductors:2
Number of Strands:46 x2
Strand OD (mm):0.12
Conductor Section (mm2):

0.5

Conductor Structure (mm2):2 x0.5
Conductor Material:SPOFC
Insulation OD (in):0.063 x2
Insulation OD (mm):1.6 x2
Insulation Material:PE
Type of Shield:Braid x1
Shield Material:SPOFC
Shield Coverage (%):95
Jacket Material:PVC
Jacket Color:

Black(BK)

Outside Diameter (in):0.307
Outside Diameter (mm):7.8
Large Roll (ft/Roll):600
Large Roll (m/Roll):183
Standard  Roll   (ft/Roll)328
Standard  Roll  (m/Roll)100
