IBC-24

Kirlin Entry 24 Instrument Cable


●  24 gauge Copper-Calad Aluminum Magnesium alloy (CCAM) conductor

●  CCAM spiral shielding with 80% coverage

●  PVC jacket with 6.3mm outer diameter

Conductor Gauge (AWG):24
Number of Conductors:1
Number of Strands:19
Strand OD (mm):0.12
Conductor Section (mm2):

0.2

Conductor Structure (mm2):1 x0.2
Conductor Material:CCAM
Insulation OD (in):0.087
Insulation OD (mm):2.2
Insulation Material:PE
Type of Shield:Spiral
Shield Material:CCAM
Shield Coverage (%):80
Jacket Material:PVC
Jacket Color:

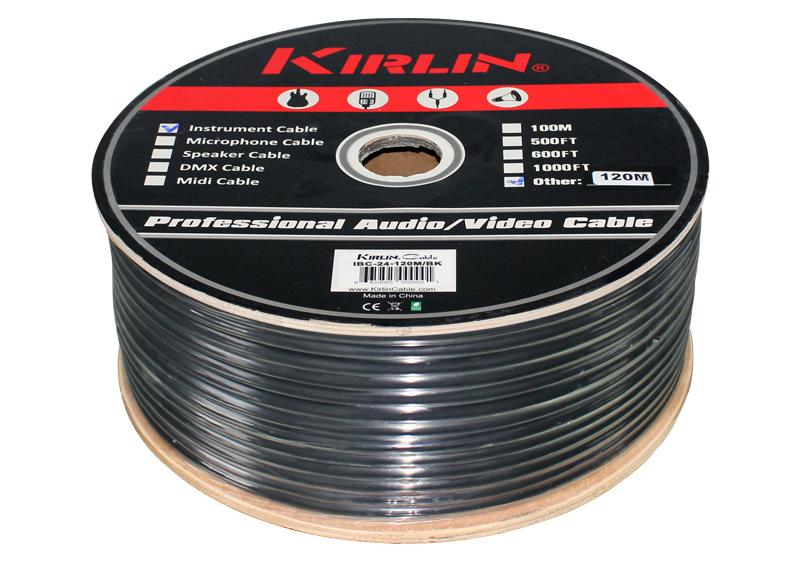

Black(BK);

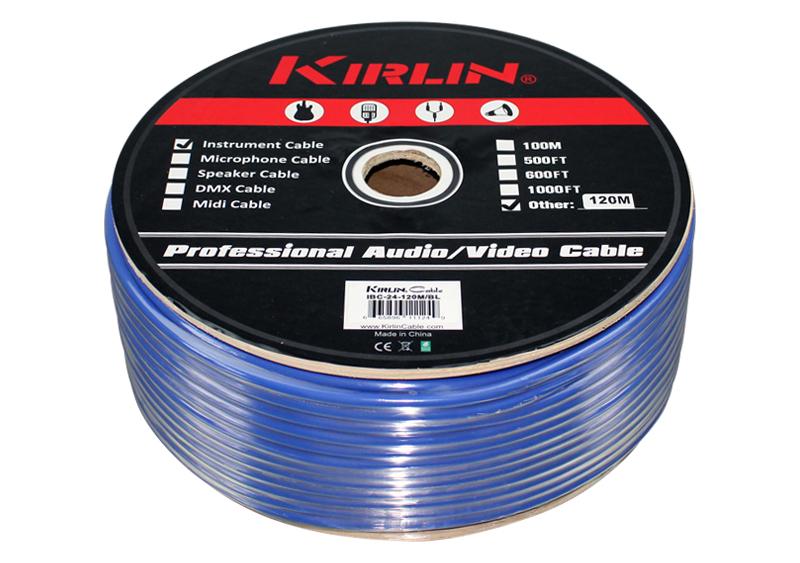

Blue(BL);

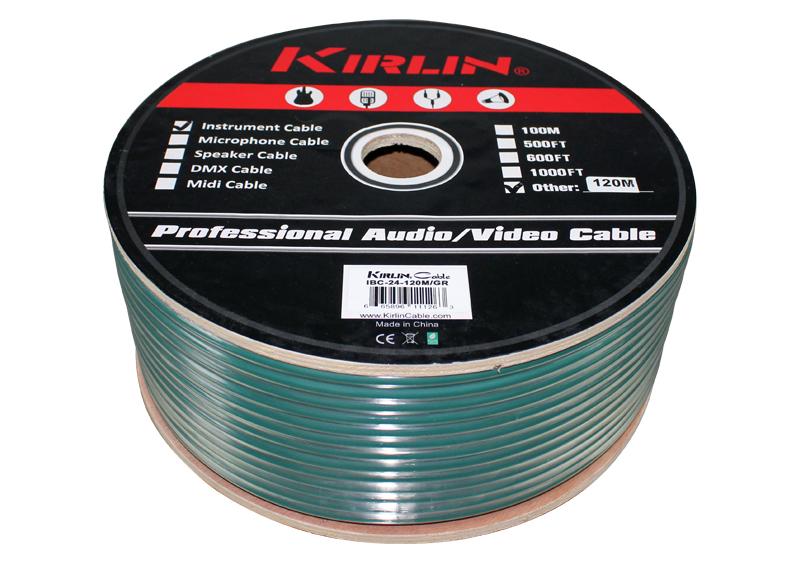

Green(GR);

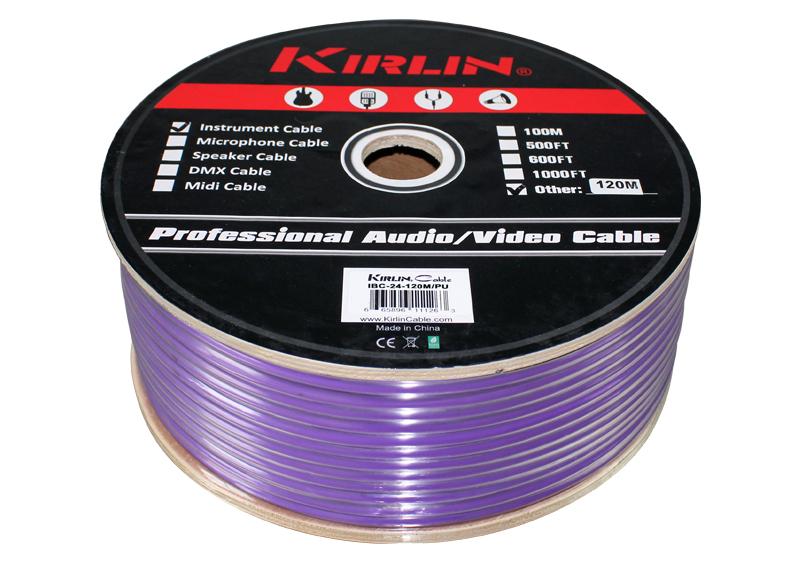

Purple(PU);

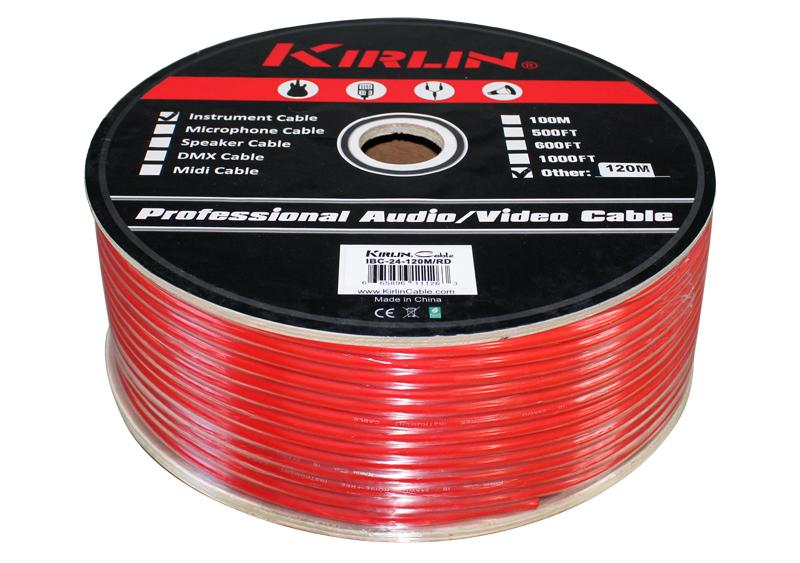

Red(RD);

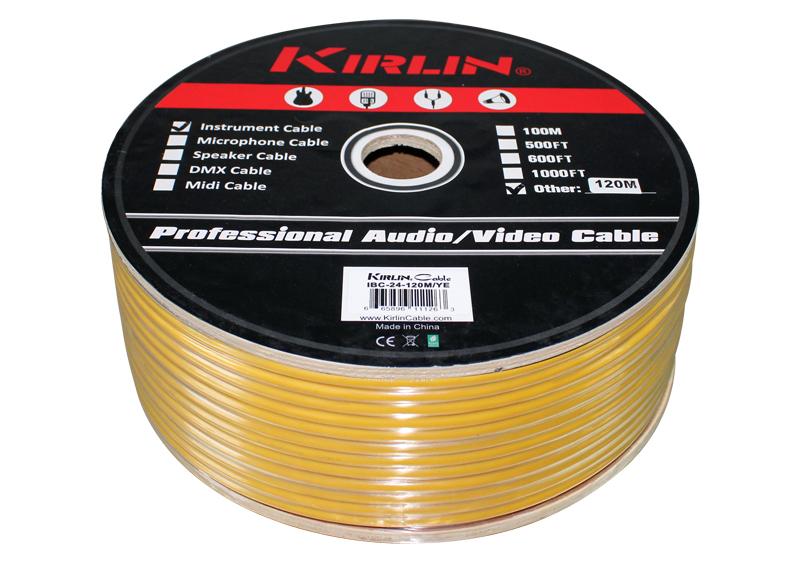

Yellow(YE)

Outside Diameter (in):0.276
Outside Diameter (mm):6.3
Large Roll (ft/Roll):1000
Large Roll (m/Roll):305
Standard  Roll   (ft/Roll)328
Standard  Roll  (m/Roll)100
