IW-20
Kirlin W-Series Instrument Cable

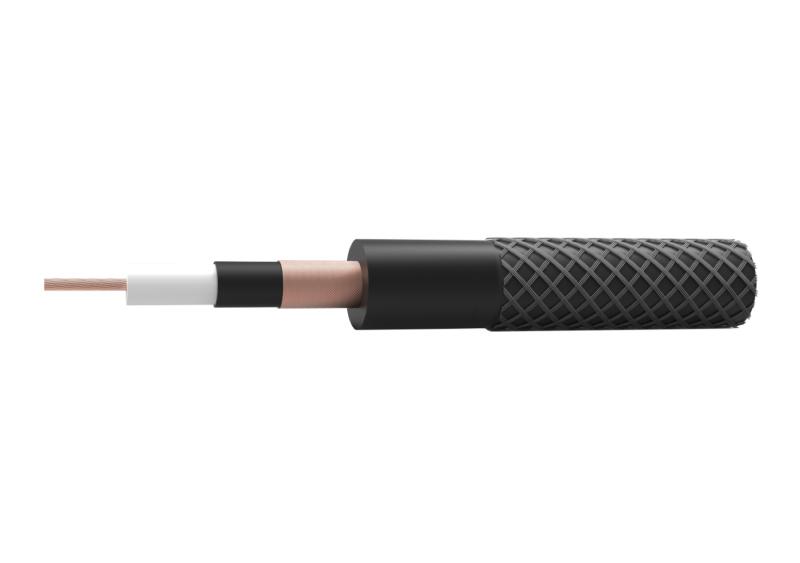

● 20 gauge Copper conductor
● Copper spiral shielding with 90% coverage
● Woven jacket with 7.0mm outer diameter
| Conductor Gauge (AWG): | 20 |
| Number of Conductors: | 1 |
| Number of Strands: | 46 |
| Strand OD (mm): | 0.12 |
| Conductor Section (mm2): | 0.5 |
| Conductor Structure (mm2): | 1 x0.5 |
| Conductor Material: | Copper |
| Insulation OD (in): | 0.087 |
| Insulation OD (mm): | 2.2 |
| Insulation Material: | PE |
| Type of Shield: | Spiral |
| Shield Material: | Copper |
| Shield Coverage (%): | 90 |
| Jacket Material: | Woven |

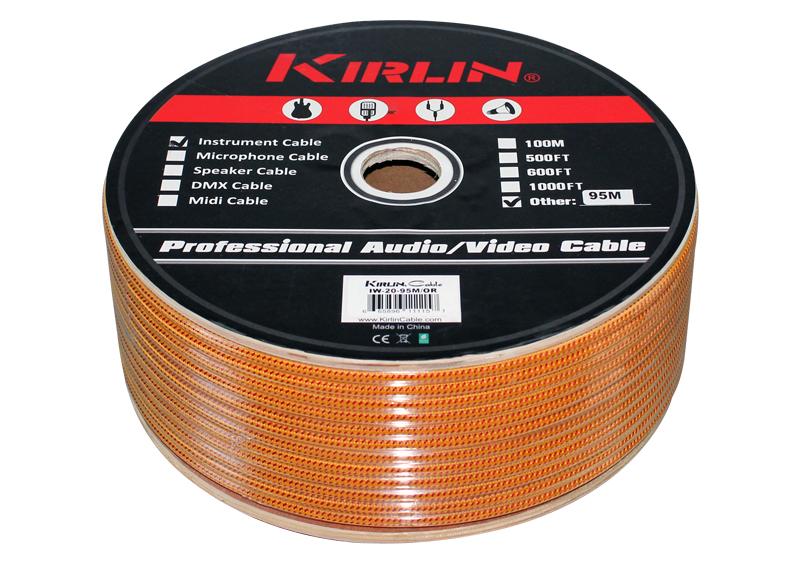

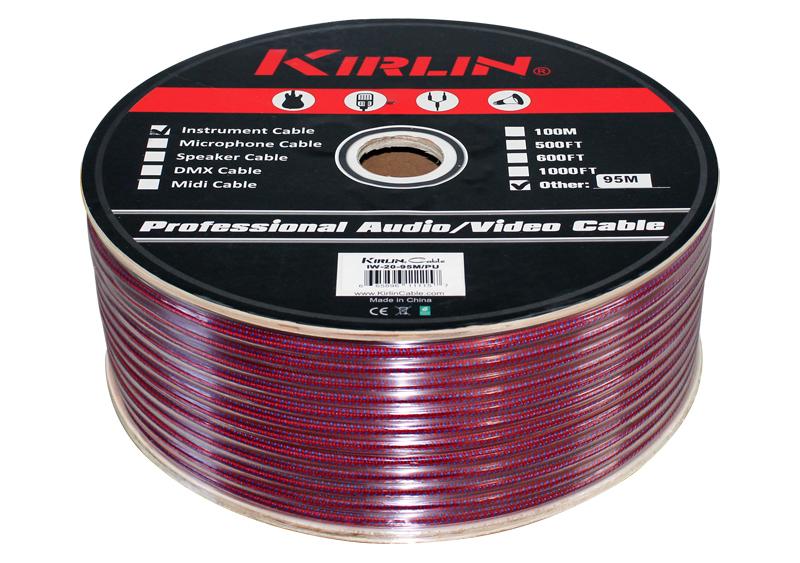

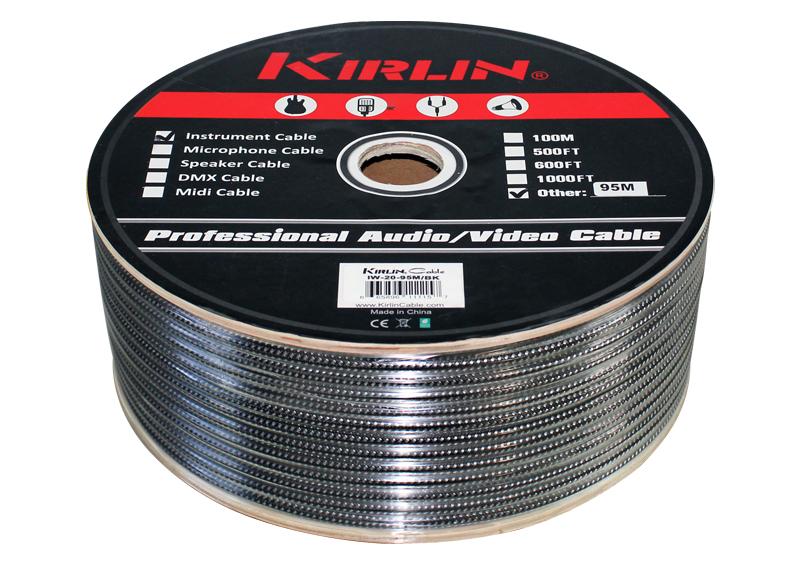

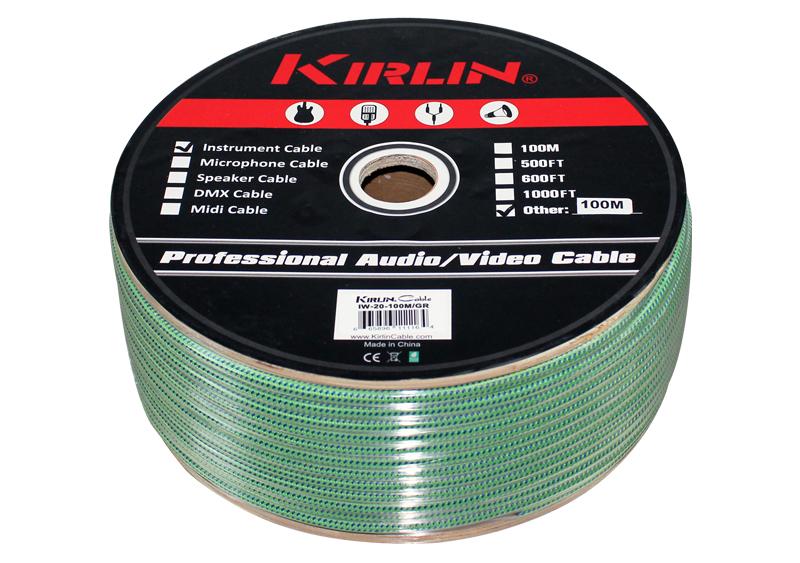

| Jacket Color: | Purple(PU); Orange(OR); Green(GR); Black(BK) |
| Outside Diameter (in): | 0.276 |
| Outside Diameter (mm): | 7.0 |
| Large Roll (ft/Roll): | 1000 |
| Large Roll (m/Roll): | 305 |
| Standard Roll (ft/Roll) | 328 |
| Standard Roll (m/Roll) | 100 |
