IM-20
Kirlin Premium Instrument Cable

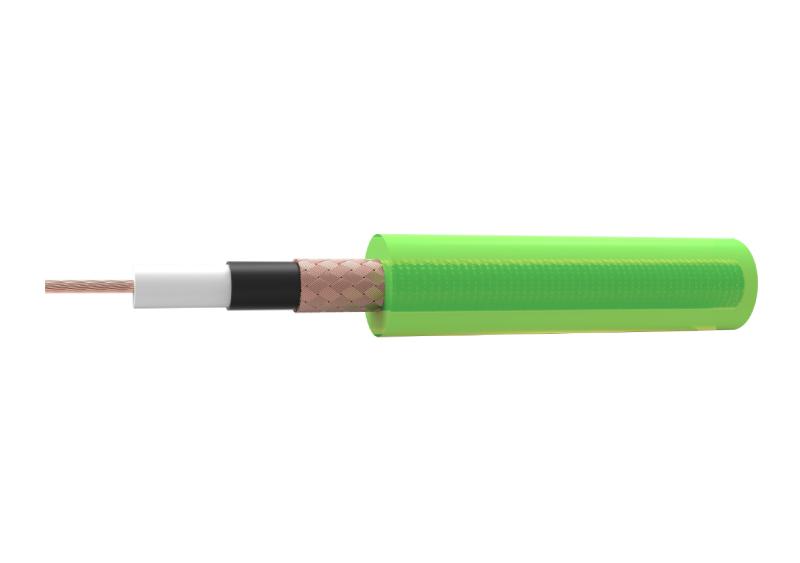

● 20 gauge Copper conductor
● Copper braided shielding with 95% coverage
● PVC jacket with 7.0mm outer diameter
| Conductor Gauge (AWG): | 20 |
| Number of Conductors: | 1 |
| Number of Strands: | 46 |
| Strand OD (mm): | 0.12 |
| Conductor Section (mm2): | 0.5 |
| Conductor Structure (mm2): | 1 x0.5 |
| Conductor Material: | Copper |
| Insulation OD (in): | 0.087 |
| Insulation OD (mm): | 2.2 |
| Insulation Material: | PE |
| Type of Shield: | Braid x1 |
| Shield Material: | Copper |
| Shield Coverage (%): | 95 |
| Jacket Material: | PVC |

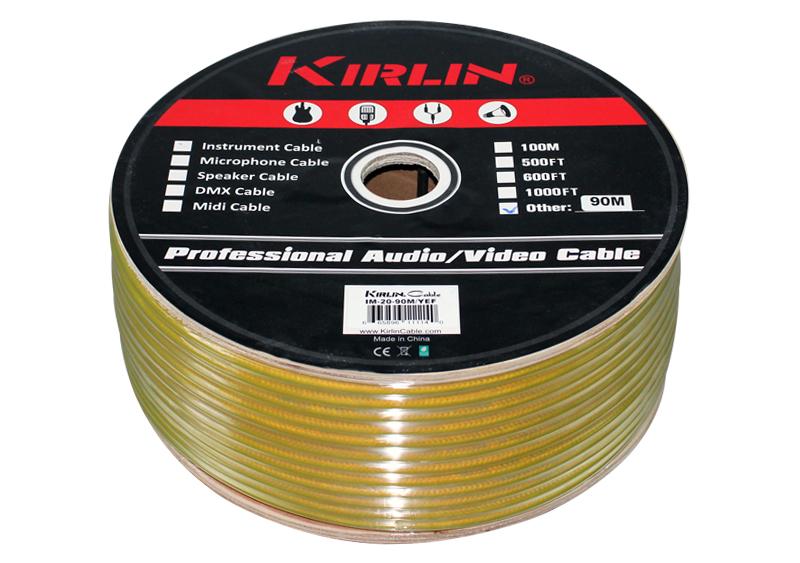

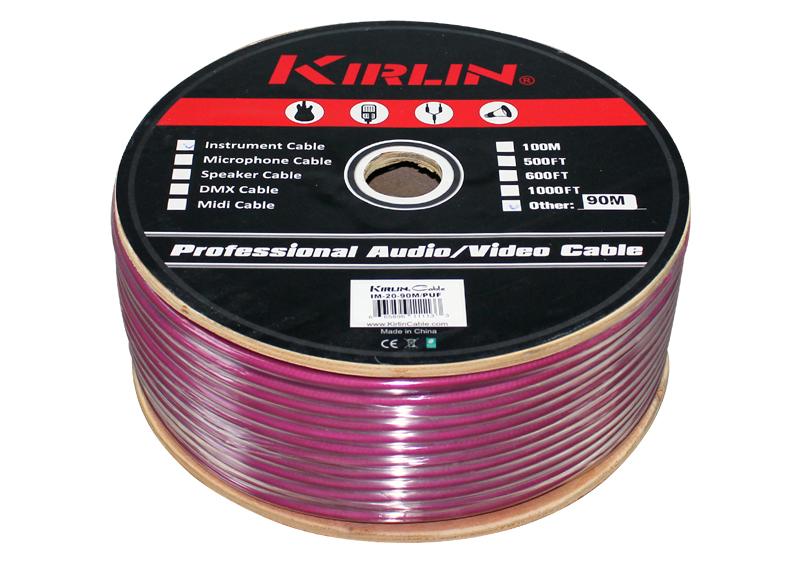

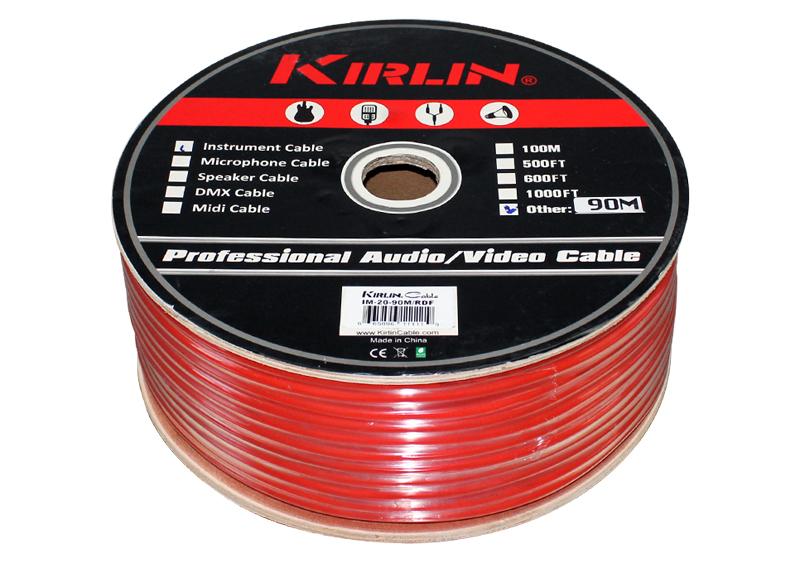

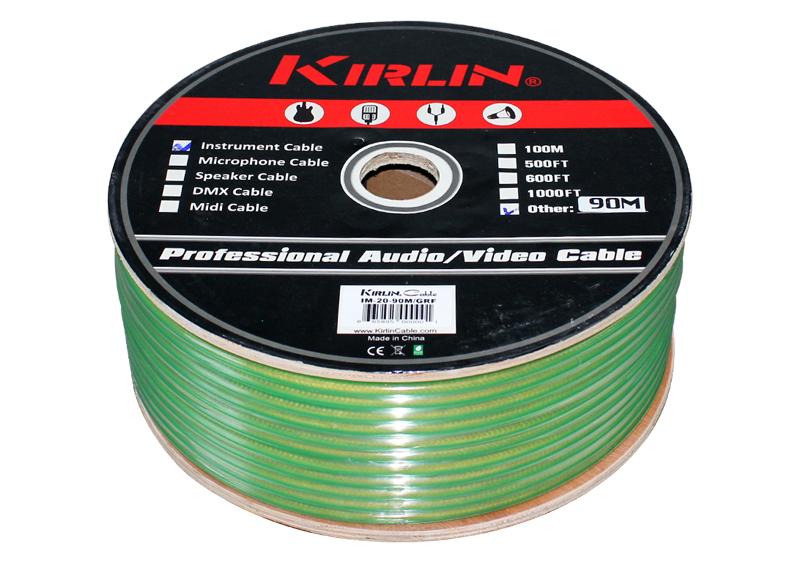

| Jacket Color: | Green-frost(GRF); Purple-frost(PUF); Red-frost(RDF); Yellow-frost(YEF) |
| Outside Diameter (in): | 0.276 |
| Outside Diameter (mm): | 7.0 |
| Large Roll (ft/Roll): | 1000 |
| Large Roll (m/Roll): | 305 |
| Standard Roll (ft/Roll) | 328 |
| Standard Roll (m/Roll) | 100 |
