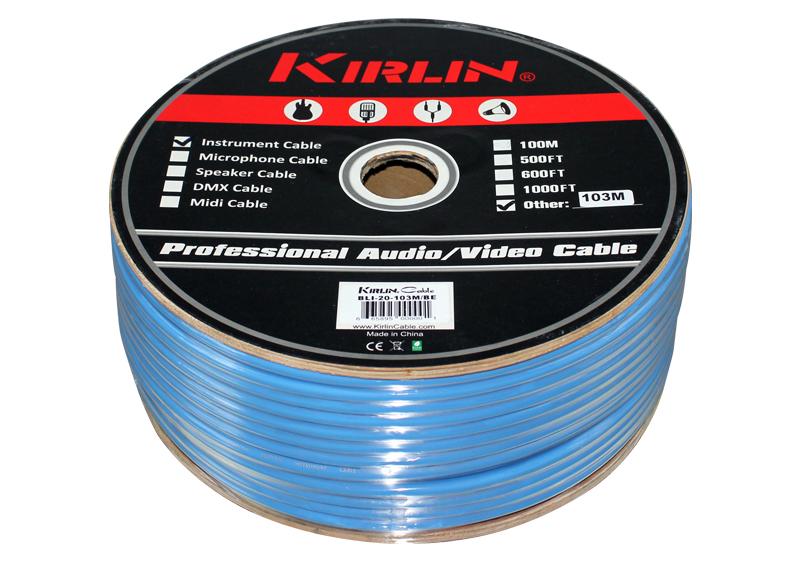

Kirlin Blueline Instrument Cable

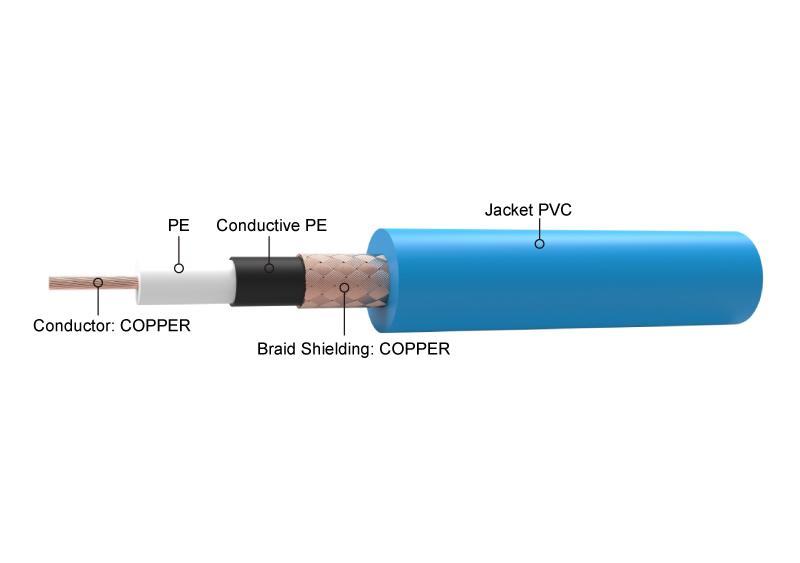

●  20 gauge Oxygen Free Copper (OFC) conductor

●  OFC braided shielding with 95% coverage

●  Blue (BE) PVC jacket with 7.0mm outer diameter

Conductor Gauge (AWG):20
Number of Conductors:1
Number of Strands:46
Strand OD (mm):0.12
Conductor Section (mm2):


Conductor Structure (mm2):1 x0.5
Conductor Material:OFC
Insulation OD (in):0.087
Insulation OD (mm):2.2
Insulation Material:PE
Type of Shield:Braid x1
Shield Material:OFC
Shield Coverage (%):95
Jacket Material:PVC
Jacket Color:Blue(BE)
Outside Diameter (in):0.276
Outside Diameter (mm):7.0
Large Roll (ft/Roll):1000
Large Roll (m/Roll):305
Standard  Roll   (ft/Roll)328
Standard  Roll  (m/Roll)100
