IT-20

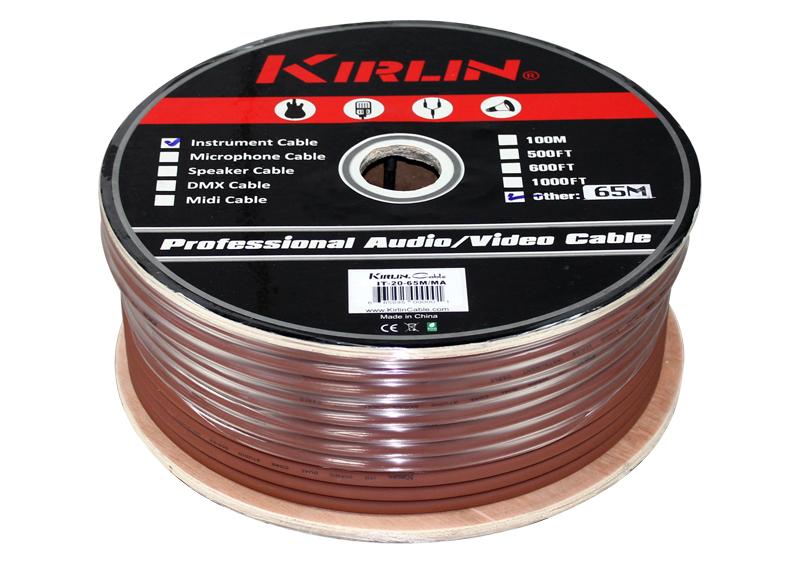

Kirlin Studio IT Instrument Cable
● 20 gauge Ohno Continuous Casting (OCC) conductor
● OCC braided shielding with 95% coverage
● White-frost (WHF) PVC jacket with 7.5mm outer diameter
● It is based on the cable engineering theory of ensuring superior signal transmission through multiple layers of high-definition conductors with minimum or zero interference, delay,distortion, or loss.
| Conductor Gauge (AWG): | 20 |
| Number of Conductors: | 1 |
| Number of Strands: | 37 |
| Strand OD (mm): | 0.13 |
| Conductor Section (mm2): | 0.5 |
| Conductor Structure (mm2): | 1 x 0.5 |
| Conductor Material: | OCC |
| Insulation OD (in): | 0.118 |
| Insulation OD (mm): | 3 |
| Insulation Material: | PE |
| Type of Shield: | Braid x1 |
| Shield Material: | OCC |
| Shield Coverage (%): | 95 |
| Jacket Material: | PVC |
| Jacket Color: | Maroon (MA) |
| Outside Diameter (in): | 0.307 |
| Outside Diameter (mm): | 7.5 |
| Large Roll (ft/Roll): | 600 |
| Large Roll (m/Roll): | 183 |
| Standard Roll (ft/Roll) | 328 |
| Standard Roll (m/Roll) | 100 |
