IS-18

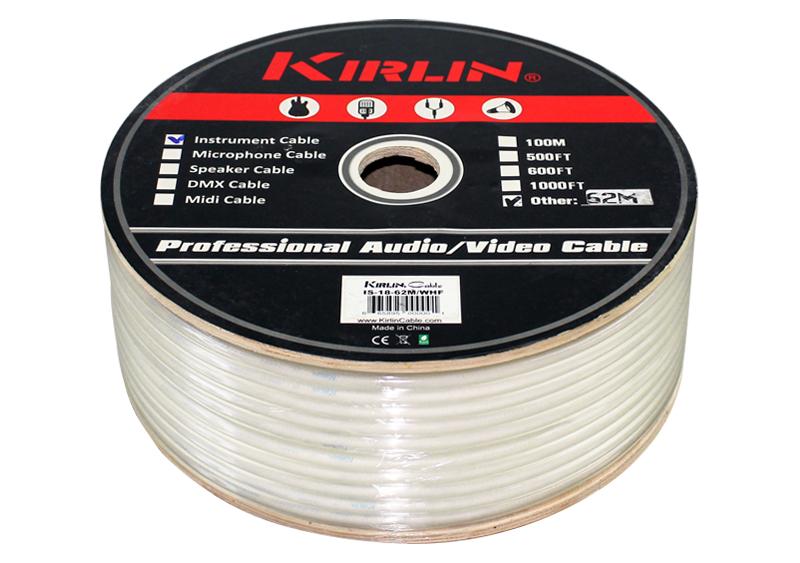

Kirlin Studio 18 Instrument Cable


●  18 gauge Sliver Plated Oxygen Free Copper (SPOFC) conductor

●  SPOFC braided shielding with 95% coverage

●  White-frost (WHF) PVC jacket with 7.8mm outer diameter

●  It is based on the cable engineering theory of ensuring superior signal transmission through multiple layers of high-definition conductors with minimum or zero interference, delay,distortion, or loss.

Conductor Gauge (AWG):18
Number of Conductors:1
Number of Strands:73
Strand OD (mm):0.12
Conductor Section (mm2):

0.8

Conductor Structure (mm2):1 x 0.8
Conductor Material:SPOFC
Insulation OD (in):0.118
Insulation OD (mm):3
Insulation Material:PE
Type of Shield:Braid x1
Shield Material:SPOFC
Shield Coverage (%):95
Jacket Material:PVC
Jacket Color:White-frost (WHF)
Outside Diameter (in):0.307
Outside Diameter (mm):7.8
Large Roll (ft/Roll):600
Large Roll (m/Roll):183
Standard  Roll   (ft/Roll)328
Standard  Roll  (m/Roll)100
