AP-24(2)

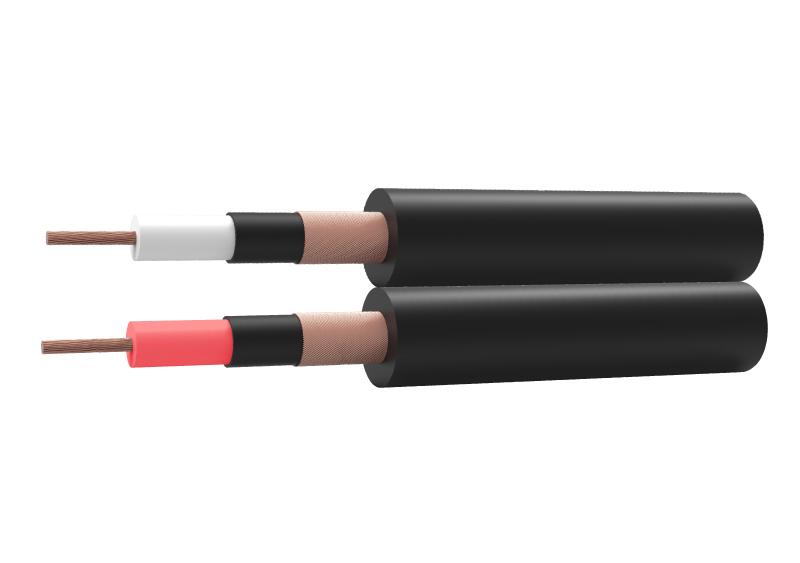

Kirlin Dual Cable
Conductor Gauge (AWG): | 24 |
Number of Conductors: | 2 x2 |
Number of Strands: | 19 x2 |
Strand OD (mm): | 0.12 |
Conductor Section (mm2): | 0.2 |
Conductor Structure (mm2): | 2 x0.2 |
Conductor Material: | Copper |
Insulation OD (in): | 0.087 x2 |
Insulation OD (mm): | 2.2 x2 |
Insulation Material: | PE |
Type of Shield: | Spiral |
Shield Material: | Copper |
Shield Coverage (%): | 90 |
Jacket Material: | PVC |
Jacket Color: | Black(BK) |
Outside Diameter (in): | 0.216 x2 |
Outside Diameter (mm): | 5.5 x2 |

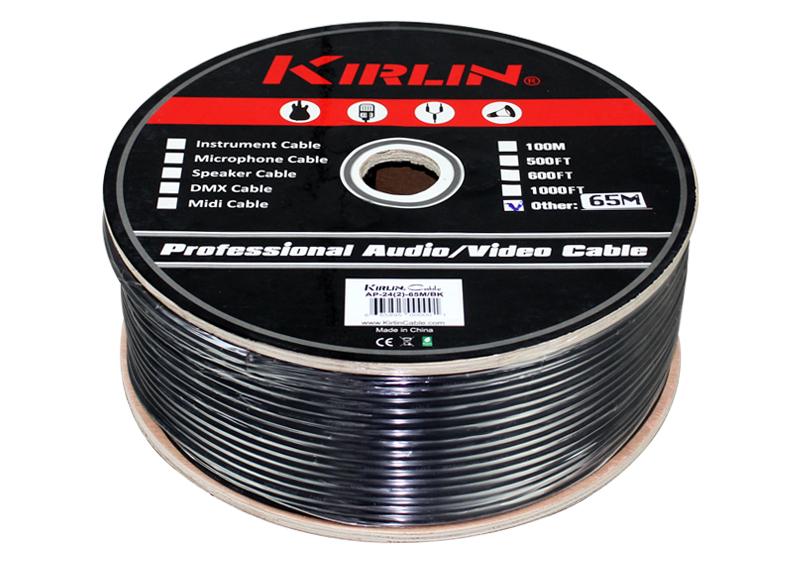

Large Roll (ft/Roll): | 500 |
Large Roll (m/Roll): | 153 |
Standard Roll (ft/Roll) | 328 |
Standard Roll (m/Roll) | 100 |
