DMX-26(3)

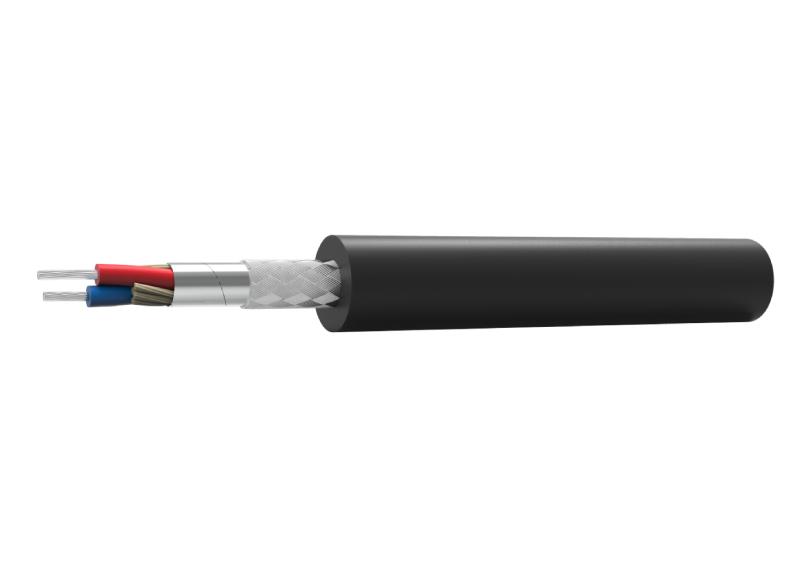

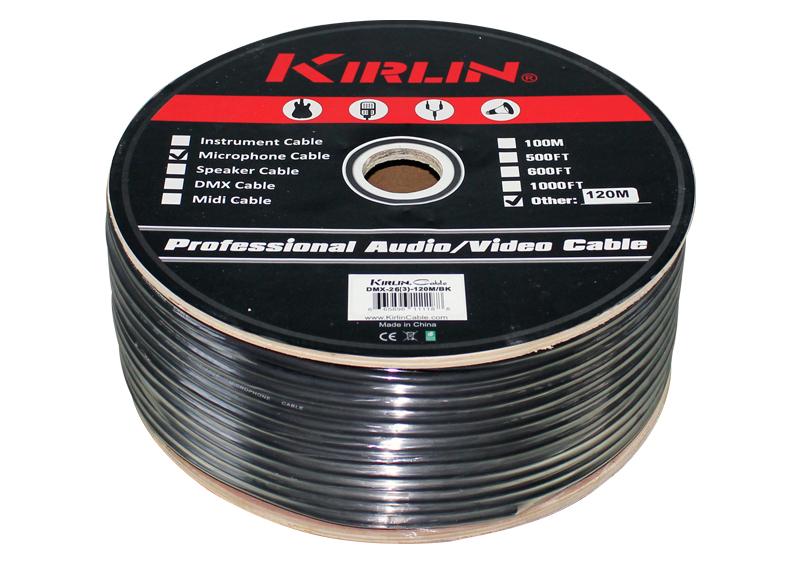

Kirlin DMX Cable
| Conductor Gauge (AWG): | 26 |
| Number of Conductors: | 2 |
| Number of Strands: | 12 x2 |
| Strand OD (mm): | 0.12 |
| Conductor Section (mm2): | 0.136 |
| Conductor Structure (mm2): | 2 x0.136 |
| Conductor Material: | Tin Plated Copper |
| Insulation OD (in): | 0.051 x2 |
| Insulation OD (mm): | 1.30 x2 |
| Insulation Material: | PE |
| Type of Shield: | Braid |
| Shield Material: | Tin Plated Copper |
| Shield Coverage (%): | 90 |
| Jacket Material: | PVC |
| Jacket Color: | Black（BK） |
| Outside Diameter (in): | 0.236 |
| Outside Diameter (mm): | 6.0 |
| Large Roll (ft/Roll): | 500 |
| Large Roll (m/Roll): | 153 |
| Standard Roll (ft/Roll) | 328 |
| Standard Roll (m/Roll) | 100 |
