MW-24
Kirlin Original Microphone Cable

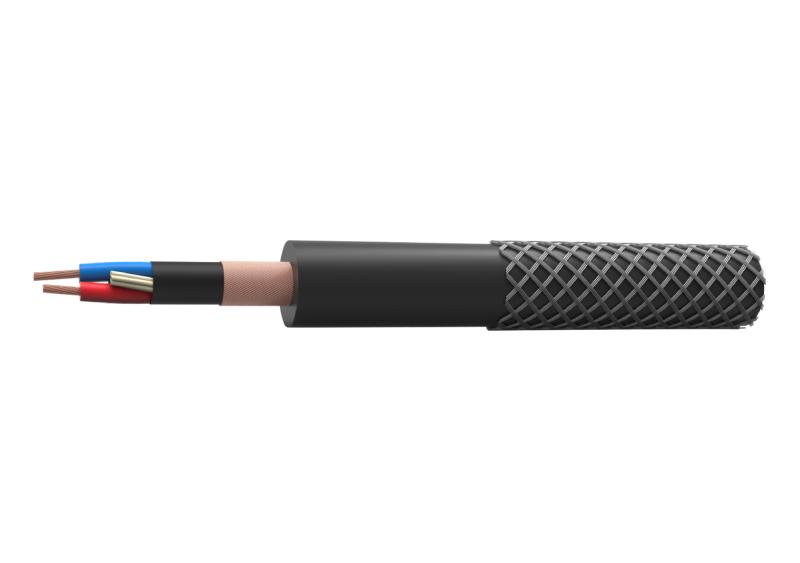

● 24 x2 gauge Copper conductor
● Copper braided shielding with 90% coverage
● Woven jacket with 6.8mm outer diameter
| Conductor Gauge (AWG): | 24 |
| Number of Conductors: | 2 |
| Number of Strands: | 19 x2 |
| Strand OD (mm): | 0.12 |
| Conductor Section (mm2): | 0.215 |
| Conductor Structure (mm2): | 2 x0.215 |
| Conductor Material: | Copper |
| Insulation OD (in): | 0.053 x2 |
| Insulation OD (mm): | 1.35 x2 |
| Insulation Material: | PE |
| Type of Shield: | Spiral |
| Shield Material: | Copper |
| Shield Coverage (%): | 90 |
| Jacket Material: | Woven |
| Jacket Color: | Black(BK); Green(GR); Orange(OR); Purple(PU) |
| Outside Diameter (in): | 0.268 |
| Outside Diameter (mm): | 6.8 |
| Large Roll (ft/Roll): | 1000 |
| Large Roll (m/Roll): | 305 |
| Standard Roll (ft/Roll) | 328 |
| Standard Roll (m/Roll) | 100 |
