IBC-20
Kirlin Original 20 Instrument Cable
● 20 gauge Copper-Calad Aluminum Magnesium alloy (CCAM) conductor
● CCAM spiral shielding with 90% coverage
● PVC jacket with 6.5mm outer diameter
| Conductor Gauge (AWG): | 20 |
| Number of Conductors: | 1 |
| Number of Strands: | 46 |
| Strand OD (mm): | 0.12 |
| Conductor Section (mm2): | 0.5 |
| Conductor Structure (mm2): | 1 x0.5 |
| Conductor Material: | CCAM |
| Insulation OD (in): | 0.087 |
| Insulation OD (mm): | 2.2 |
| Insulation Material: | PE |
| Type of Shield: | Spiral |
| Shield Material: | CCAM |
| Shield Coverage (%): | 90 |
| Jacket Material: | PVC |

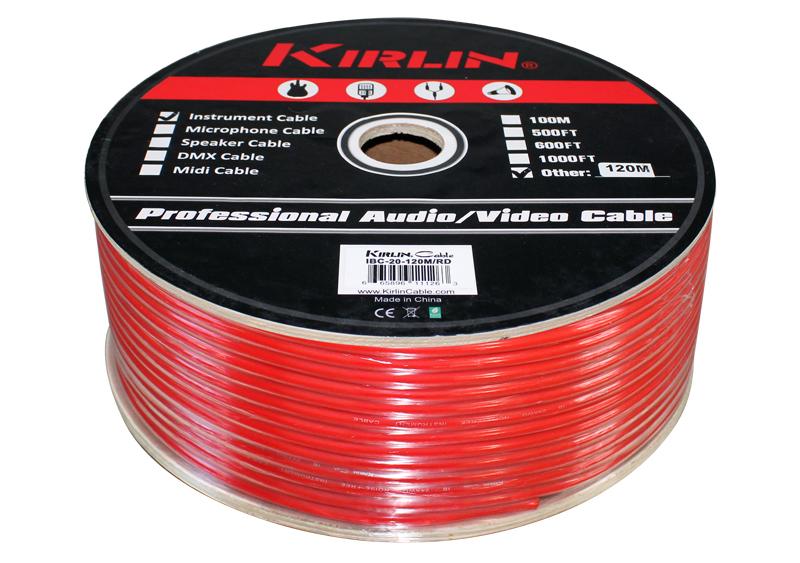

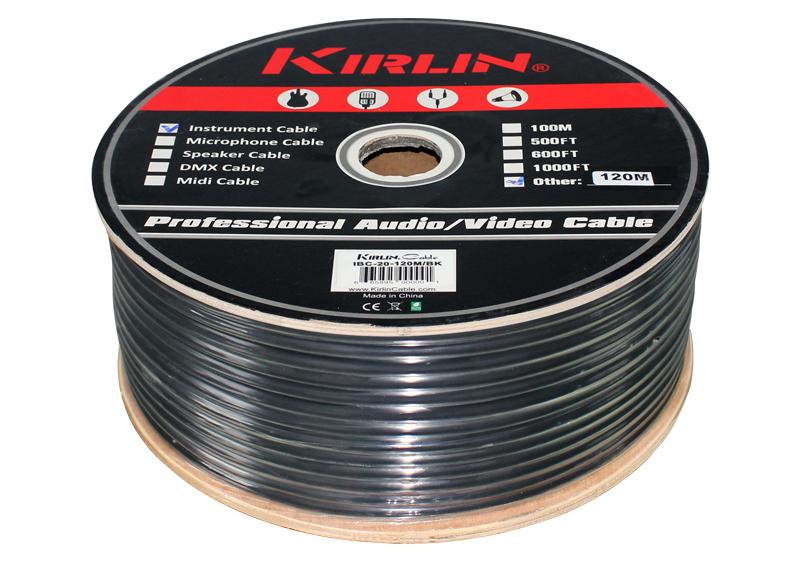

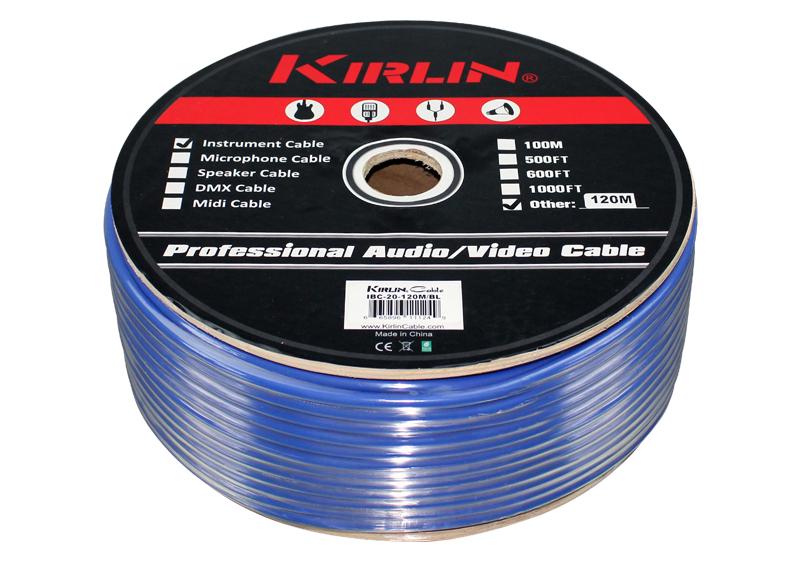

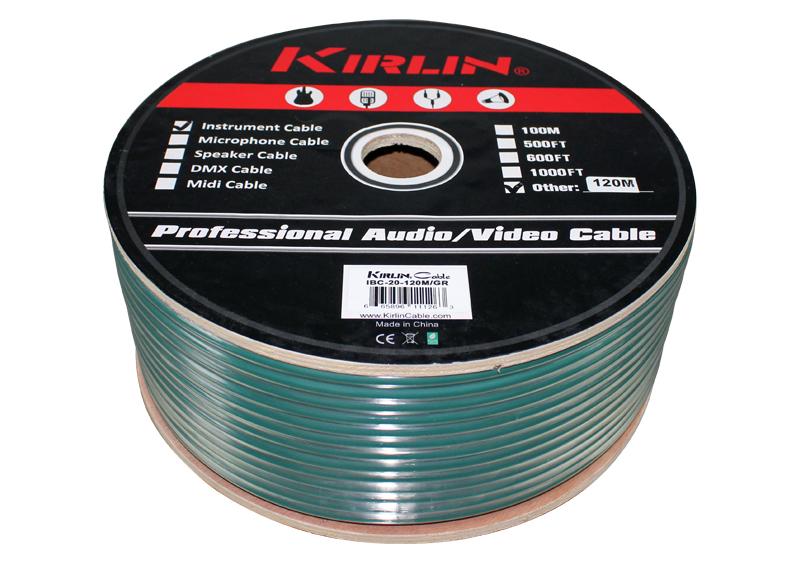

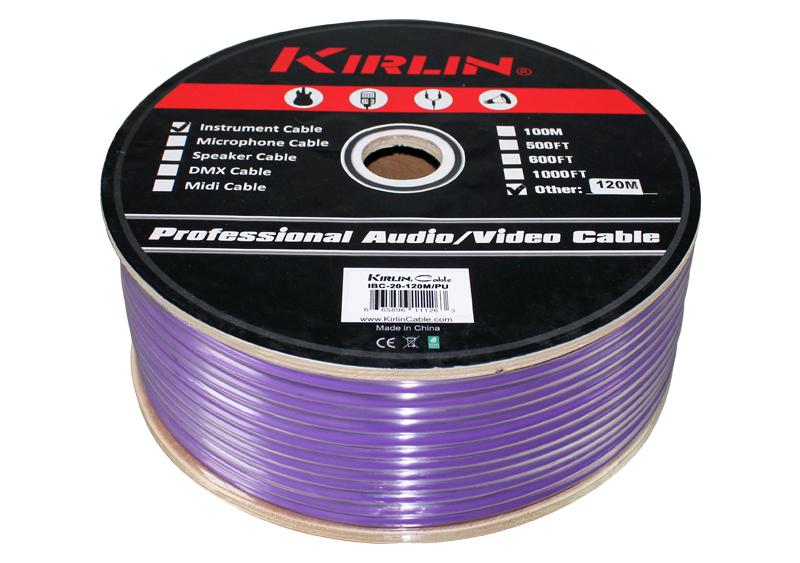

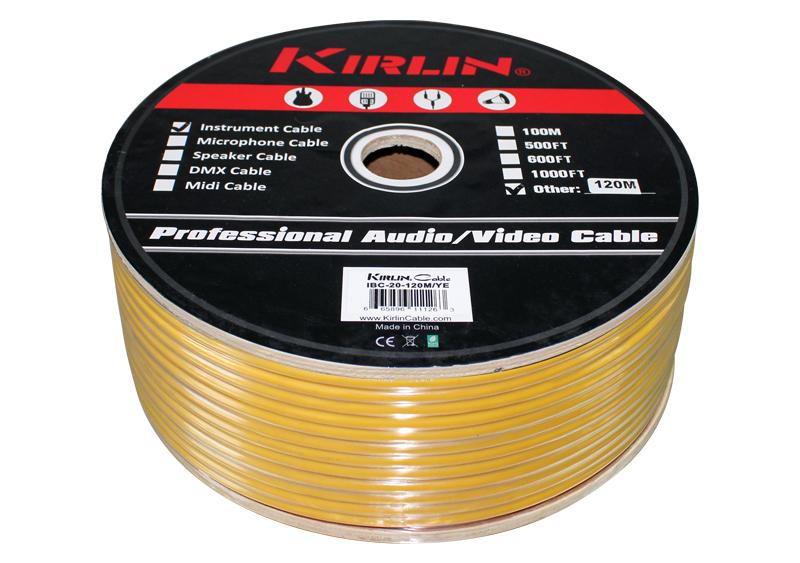

| Jacket Color: | Black(BK); Blue(BL); Green(GR); Purple(PU); Red(RD); Yellow(YE) |
| Outside Diameter (in): | 0.256 |
| Outside Diameter (mm): | 6.5 |
| Large Roll (ft/Roll): | 1000 |
| Large Roll (m/Roll): | 305 |
| Standard Roll (ft/Roll) | 328 |
| Standard Roll (m/Roll) | 100 |
