X-3215
Kirlin XLR Male
| Connection Type | XLR |
| Gender | male |
| Capacitance between contacts | ≤ 4 pF |
| Contact resistance | ≤ 3 mΩ |
| Dielectric strength | 1,5 kVdc |
| Insulation resistance | >10GΩ (initial) |
| Rated current per contact | 16 A |
| Rated voltage | <50V |

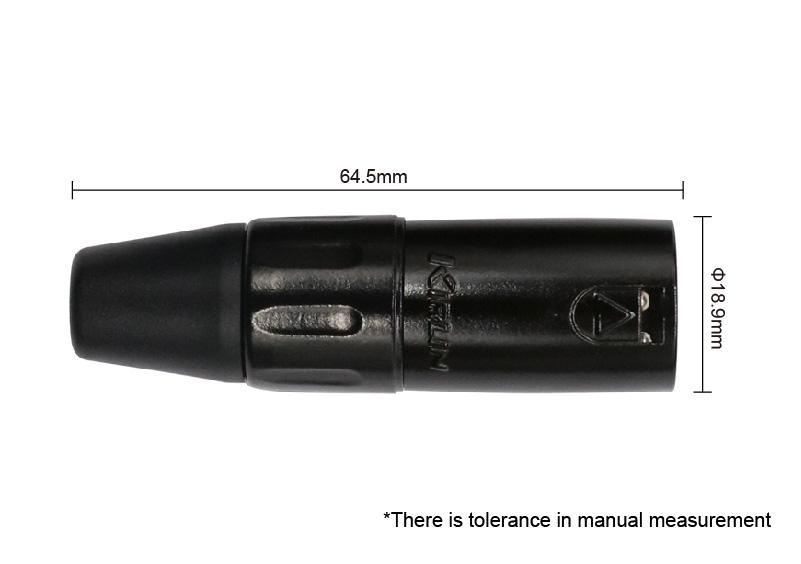

| Cable OD. | 6 -8 mm |
| Lifetime | >1000 mating cycles |
| Wiresize | max. 2.5 mm²(max. 14 AWG) |
| Temperature range | -30 °C to +80 °C |
