CH-2024PRL

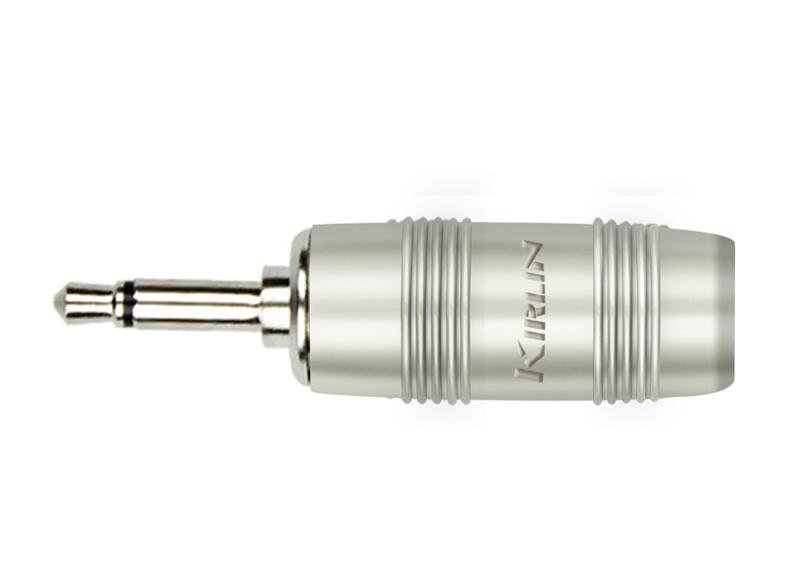

Kirlin 3.5mm Plug
3.5mm Mono Plug, Nickel-plated contact
Patent Nos. ZL 2007 3 0154655.5
| Product | |
| Connection Type | Plug |
| Gender | male |
| Product performance | |
| Contact resistance | depends on mating connector mΩ |
| Dielectric strength | 1 kVdc |
| Insulation resistance | >2GΩ (initial) |
| Rated current per contact | depends on mating connector A |
| Rated voltage | <50V |
| Cable OD. | 4 -7 mm |
| Temperature range | -20 °C to +65 °C |
