IB-20

Kirlin Original 20 Instrument Cable


●  20 gauge Oxygen Free Copper (OFC) conductor

●  OFC spiral shielding with 90% coverage

●  PVC jacket with 6.5mm outer diameter

Conductor Gauge (AWG):20
Number of Conductors:1
Number of Strands:46
Strand OD (mm):0.12
Conductor Section (mm2):

0.5

Conductor Structure (mm2):1 x0.5
Conductor Material:OFC
Insulation OD (in):0.087
Insulation OD (mm):2.2
Insulation Material:PE
Type of Shield:Spiral
Shield Material:OFC
Shield Coverage (%):90
Jacket Material:PVC
Jacket Color:

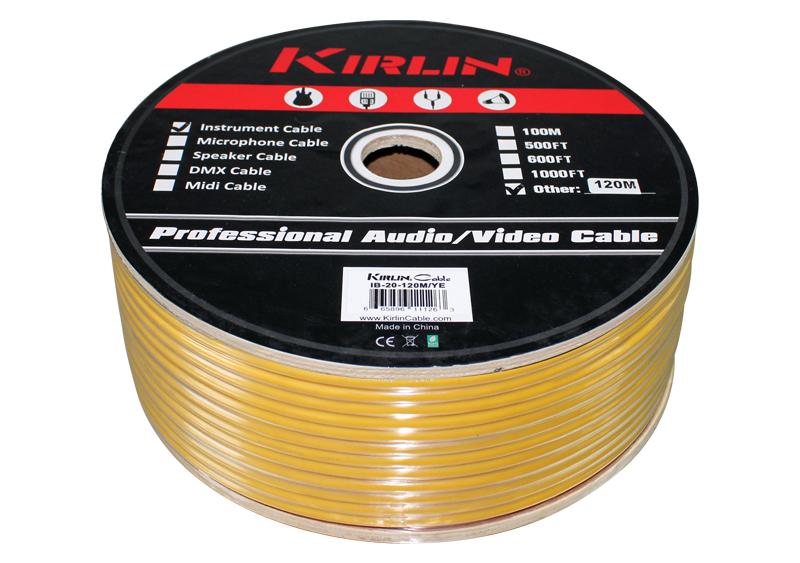

Yellow(YE);

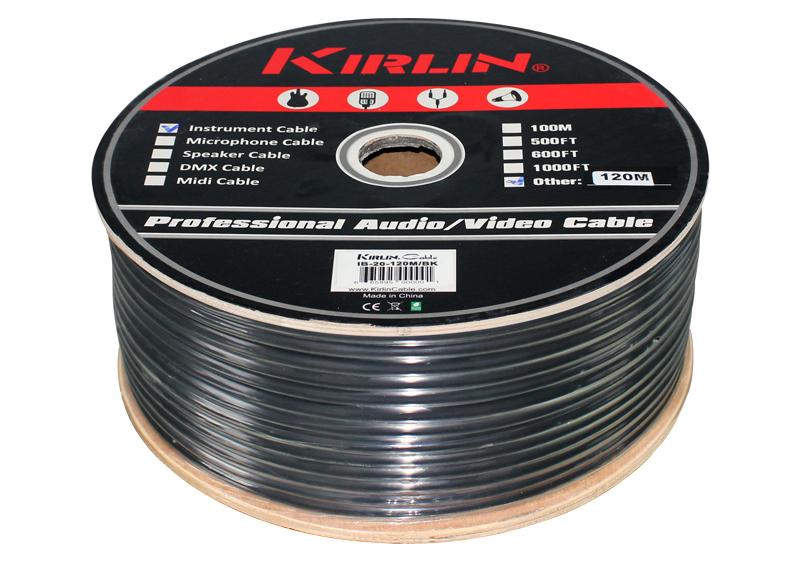

Black(BK);

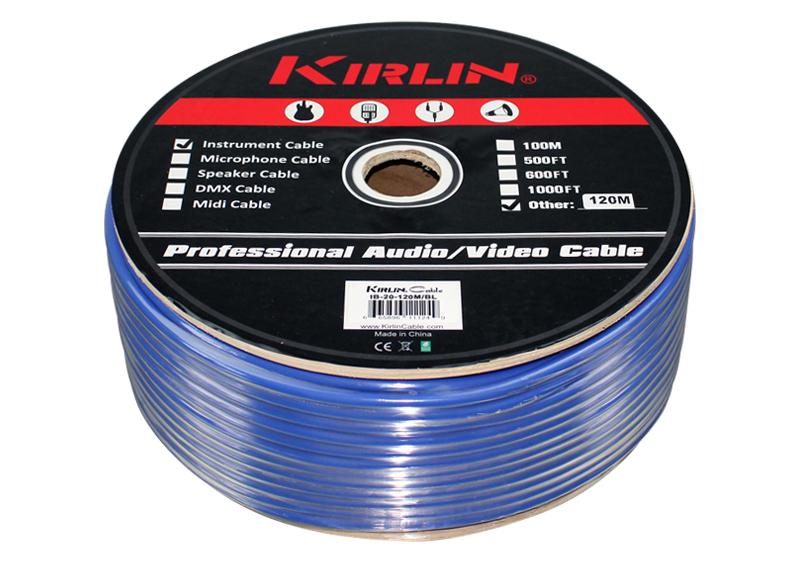

Blue(BL);

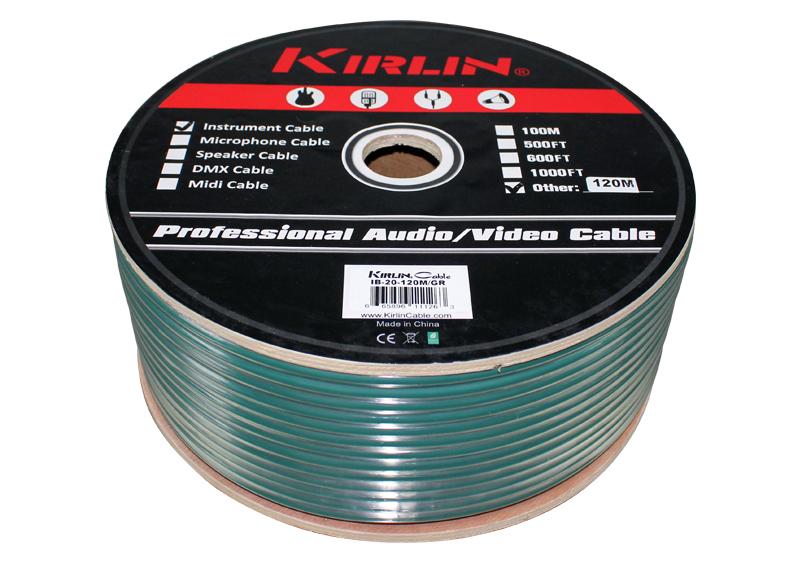

Green(GR);

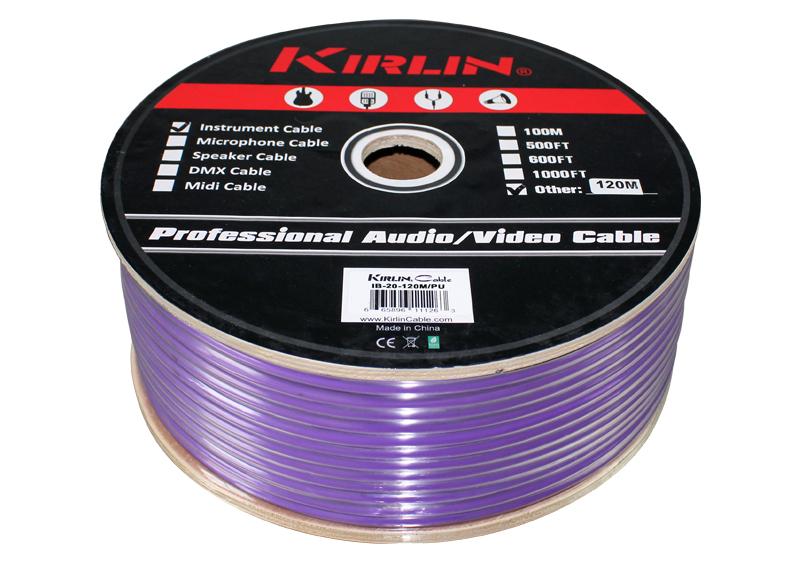

Purple(PU);

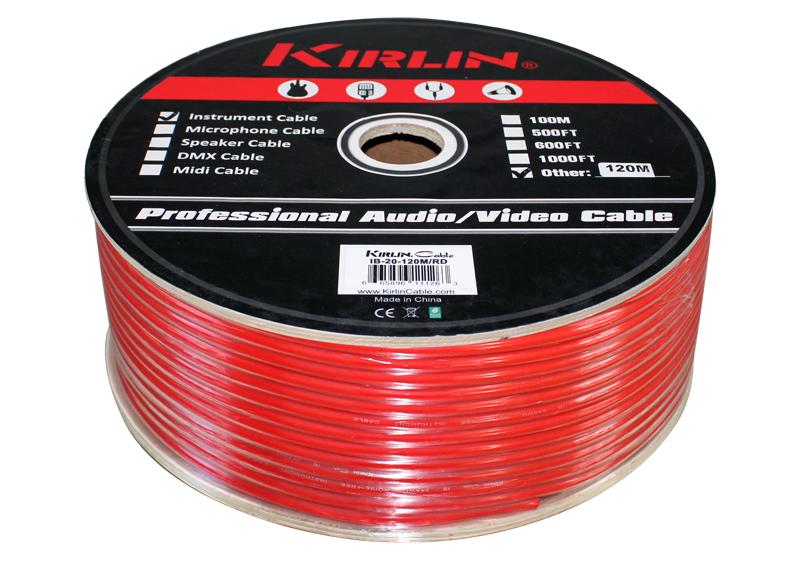

Red(RD)

Outside Diameter (in):0.256
Outside Diameter (mm):6.5
Large Roll (ft/Roll):1000
Large Roll (m/Roll):305
Standard  Roll   (ft/Roll)328
Standard  Roll  (m/Roll)100
