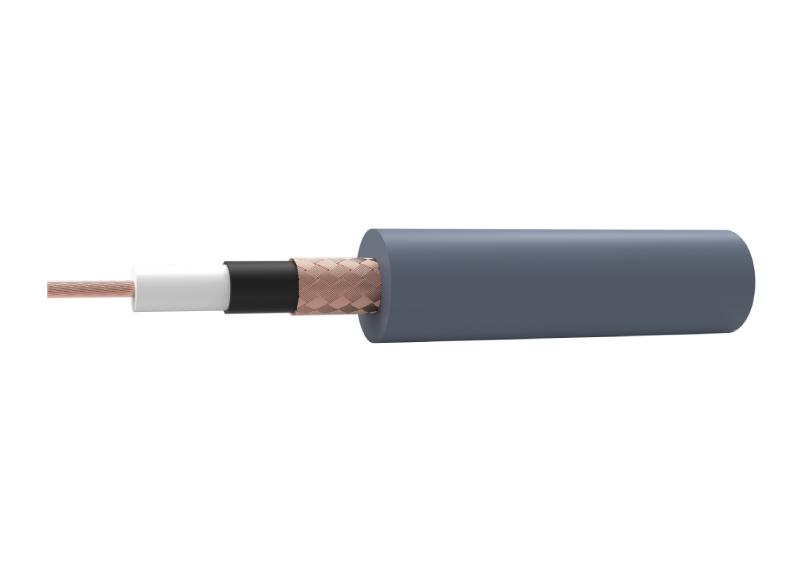

Kirlin Stage 18 Instrument Cable

●  18 gauge Oxygen Free Copper (OFC) conductor

●  OFC braided shielding with 95% coverage

●  Gray (GA) PVC jacket with 7.8mm outer diameter

Conductor Gauge (AWG):18
Number of Conductors:1
Number of Strands:73
Strand OD (mm):0.12
Conductor Section (mm2):


Conductor Structure (mm2):1 x 0.8
Conductor Material:OFC
Insulation OD (in):0.118
Insulation OD (mm):3
Insulation Material:PE
Type of Shield:Braid x1
Shield Material:OFC
Shield Coverage (%):95
Jacket Material:PVC
Jacket Color:Gray(GA)
Outside Diameter (in):0.307
Outside Diameter (mm):7.8

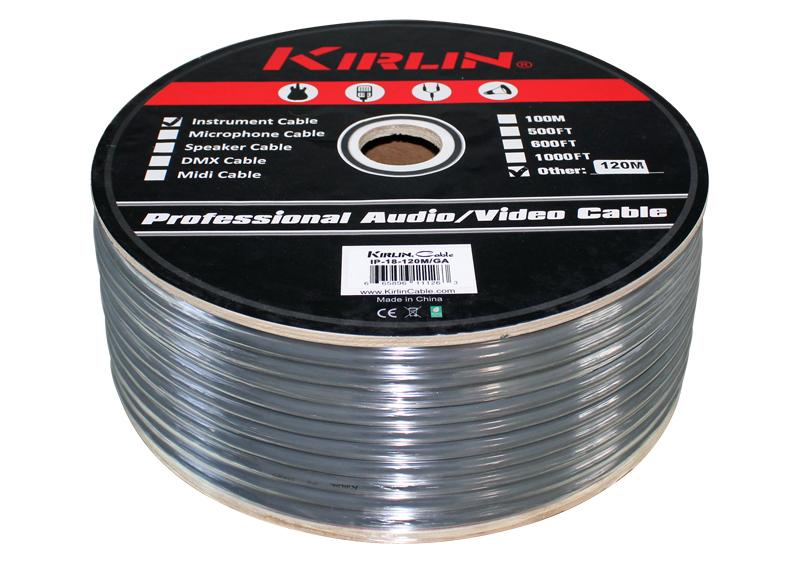

Large Roll (ft/Roll):600
Large Roll (m/Roll):183
Standard  Roll   (ft/Roll)328
Standard  Roll  (m/Roll)100
