HOME >PRODUCTS>Connectors>Plug> 1/4" Rt Angle Mono Plug >CF-2359PF
CF-2359PF

Kirlin 1/4" Rt Angle Mono Plug

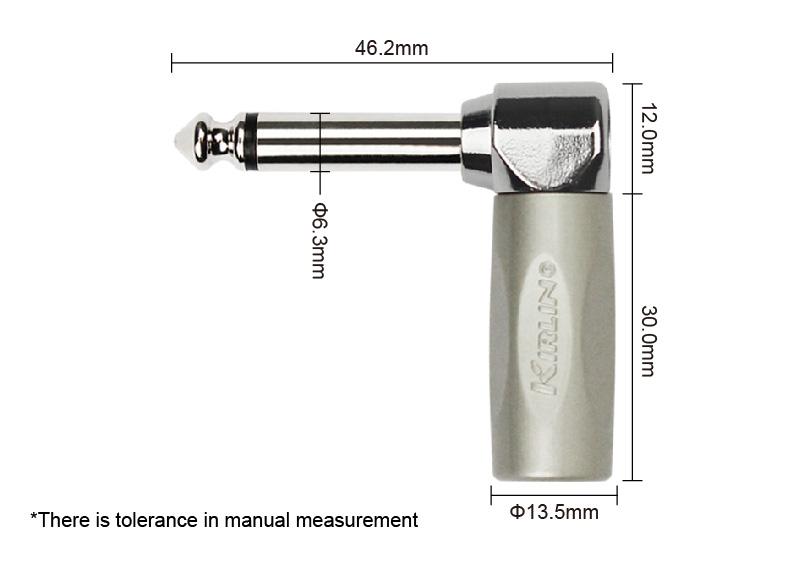

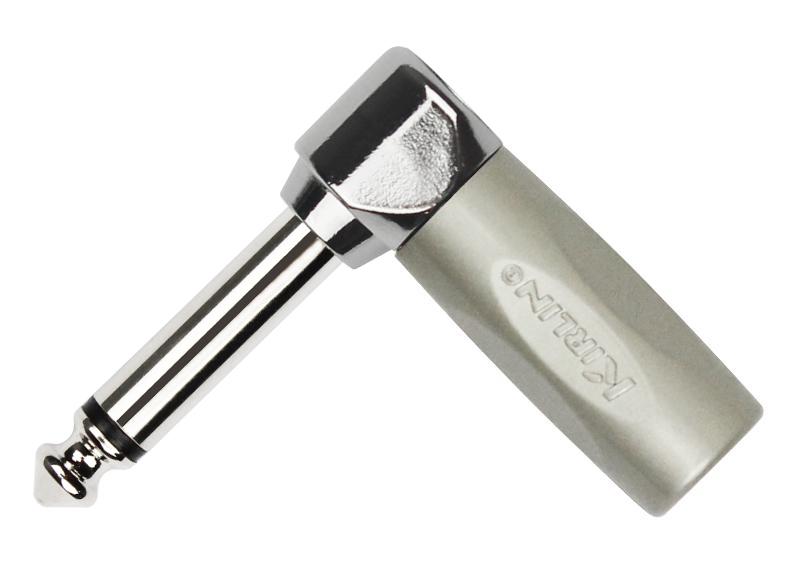

1/4" Right Angle Mono Plug, Nickel-plated contact

Product
Connection TypePlug
Gendermale
Product performance
Contact resistancedepends on mating connector mΩ
Dielectric strength1 kVdc
Insulation resistance>2 (initial)GΩ≥1 GΩ (after damp heat test)
Rated current per contactdepends on mating connector A
Rated voltage<50V
Cable OD.4 -8 mm
Lifetime>1000 mating cycles
